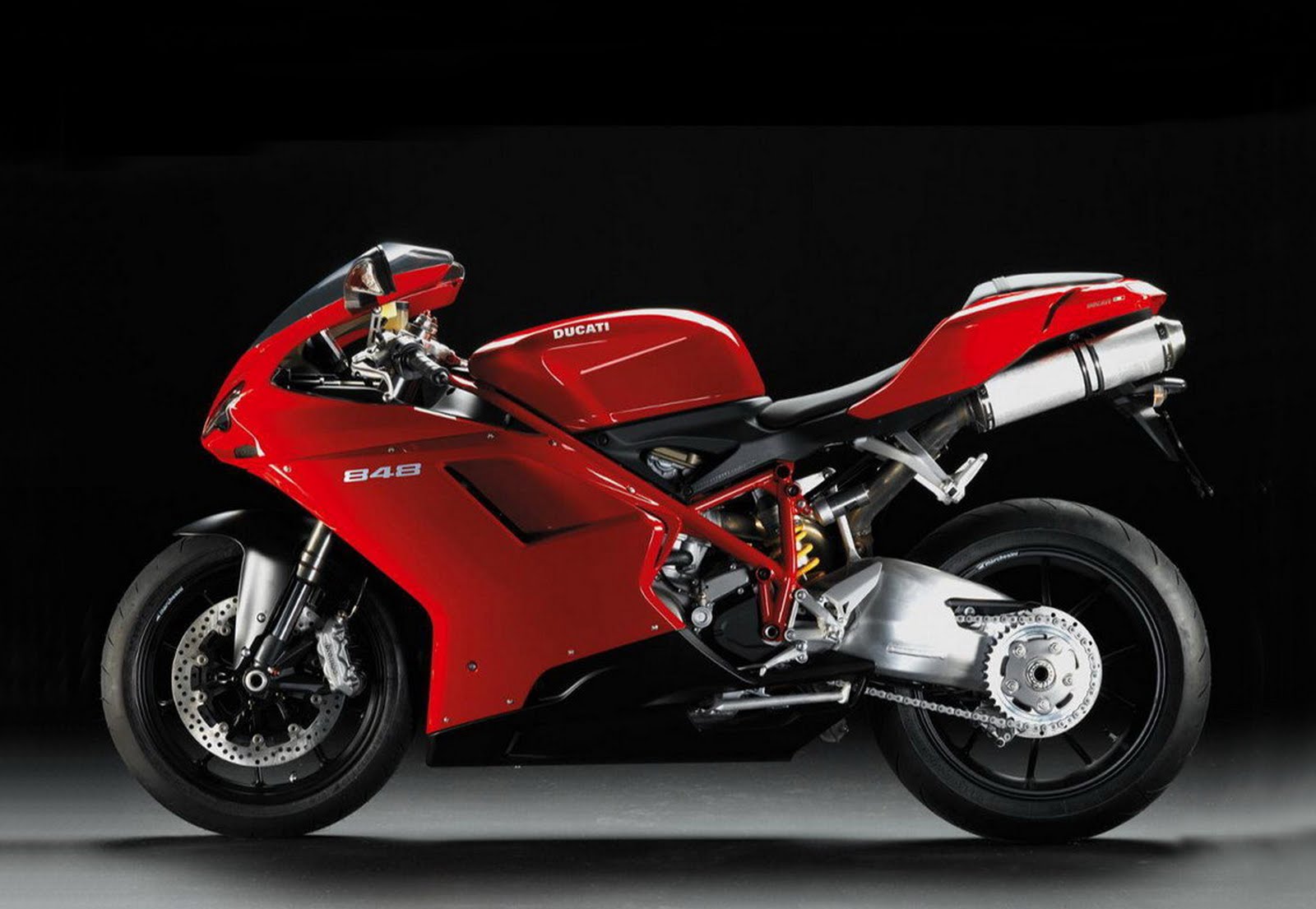

2011 Ducati 848 EVO








DUCATI 848 EVO 2011 HIGHLIGHTS

Price : $12,995.00
Bodystyle : Super Sports Bike
Warranty : 24 months
Manufacturer Country : Italy
Model Year : 2011
Displacement (cc) : 849.4
Engine Type : Longitudinal Twin

VEHICLE REVIEW

2011 Ducati 848 EVO

EVOA 140 hp Testastretta engine, steering dampers and the new monobloc brakes mean that with the 848EVO even more exhilarating performance is guaranteed. 848EVO - the most exciting way to enter the world Ducati Superbikes. The 2011 848EVO now further enhances Ducati's most impressive lightweight Superbike ever with more power from the Testastretta engine and more braking power from Brembo’s incredible Monobloc brake technology combining to provide an even more exciting way to enter the world of Ducati Superbikes. The “EVO” treatment applied to the 848 introduces a 6hp power boost to 140hp (103kW) and a torque increase to 72.3lb-ft (98Nm) that results in a razor-sharp and easy-to-use power delivery while the combination of the 848's legendary (168kg) chassis set-up and planet-stopping Brembo Monobloc brakes gives unthinkable braking performances most can only dream of. In pursuit of perfection, Ducati engineers have listened to passionate owners of the 848 Superbike since its delivery in 2008 and now enhance its specifications to deliver impressive performances whether riding through mid-town traffic or racing through track-day competition. Iconic features from the World Championship-winning machines, such as the twin under-seat silencers, single-sided swingarm, Trellis frame, beautiful race bodywork and steering damper, are all part of the 848EVO's DNA. Its family resemblance assures that it is equipped with all the performance advancements of the Superbike family, while adding its own particular character and style. The 848EVO maintains the traditional colour of Ducati red with red frame and black wheels and introduces the stunning new schemes of arctic white silk with red frame and red wheels and “dark stealth” with racing black frame and black wheels.
848 Testastretta Evoluzione engine
The new 848EVO is powered by a liquid cooled, L-Twin, Desmodromic engine that produces 140hp (103kW) @ 10,500rpm and a high-accelerating 72.3lb-ft (10kgm) of torque @ 9,750rpm. The 94mm x 61.2mm bore and stroke breathes through 4 valves per cylinder fed by totally revised inlet port shapes and racing-style elliptical throttle bodies, which are now increased in size from an equivalent diameter of 56mm to 60mm. A brand new piston crown and combustion chamber shape improve burn efficiency and increase the compression ratio from 12:1 to a power-enhancing 13.2:1 while new performance-driven camshafts provide 13mm of valve-lift compared with 11.5mm and an inlet duration increase from 253° to 257°. These incredible valve performances are made possible because of Ducati's unique Desmodromic system, where valve closure is activated mechanically. At high rpm it would be almost impossible for the valve to follow the steep closure profile of the cam lobe if it were relying upon a normal valve spring. With the Desmo system, the valve is closed mechanically with the same accuracy as it is opened, enabling steep cam profiles and radical cam timings. This system is used on every single Ducati motorcycle including their world-beating Superbike and Desmosedici MotoGP bikes.
Electronically injected and ignited by Marelli, the super-efficient power unit then exhausts through a lightweight 2-1-2 system equipped with a catalytic converter and up-rated to twin lambda probes for smooth mapping and Euro3 conformity. Terminating in Ducati's trademark twin under-seat silencers, the system delivers that unmistakable signature sound of the Desmo 90° L-Twin. The highly advanced 848 engine was the first Ducati Superbike to introduce vacuum die-cast crankcases, formed using Vacural® technology, a process that achieves a significant weight saving and ensures consistent wall thickness and increased strength. For 2011 this impressively lightweight engine has its outer-cases finished in black. The 848EVO engine is a fitting reward to Ducati's ingenuity and a clear result of the continual attention to detail and development of their twin-cylinder technology. Having more experience and success with twin-cylinder high performance engines than any other manufacturer, the L-Twin configuration remains central to Ducati's philosophy of motorcycling. This experience, plus constant investment in quality by design, advanced materials and engineering techniques, has enabled 7,500 miles (12,000 kilometres) between service intervals, making Ducati ownership easy and enjoyable.

Sportbike perfection
The 2011 Superbike model line-up presents the exciting new 848EVO with 140hp, Brembo Monobloc callipers, steering damper and stunning new arctic white silk colour scheme with red frame and red wheels and dark stealth finish with black frame and black wheels. The 1198 now comes equipped with Ducati Traction Control (DTC), Ducati Quick Shifter (DQS) and Ducati Data Analyser (DDA) as standard equipment while the brand new, track-ready 1198 SP rolls out with DTC, DQS, DDA, Ohlins TTX rear suspension, slipper clutch and lightweight aluminium fuel tank. The application of DTC to the standard model 1198 underlines Ducati’s intention to broaden the use of tried and tested race-derived electronics to its high-powered range, while the introduction of DQS to the 1198 and 1198 SP marks the first time in history that “quick-shift” electronics have been fitted to a production Ducati.

Engineered by the stopwatch
The Ducati 848EVO, 1198 and 1198 SP Superbikes are the product of a team of designers and engineers who have combined their Ducati MotoGP and World Superbike technologies to create the finest sportbikes in the world. From race-level engine specifications to World Championship-winning traction control and quickshift electronics, the results are pure excellence. The Ducati Traction Control (DTC) system further confirms Ducati's technology flow from racing to production and demonstrates how solutions developed for the track can be applied to enhance safer performance on the road. Designed by the race track Ducati Superbikes are race bikes, pure and simple. Their striking aerodynamic shapes create a natural riding position, confirmed by Ducati development and factory team riders as the optimum for speed and agility. Trademark Ducati features like the high tail section and compact front end combine with twin under-seat silencers and single-sided swingarm to express the sheer engineering beauty of aerodynamics and agility. Add the Testastretta Evoluzione engines as the hearts of the machines and the result is all-out performance Ducati Superbikes that look fast even when parked.

Chassis & Suspension

The 848EVO, 1198 and 1198 SP chassis and suspension are the result of a 'performance-first' priority approach to development, in which the goal is always to further reduce weight and increase strength and rigidity to manage the high-powered Testastretta Evoluzione engines.

Trellis frame
Developed in cooperation with Ducati Corse, the lightweight Trellis frame features 34mm main section tubes with a material thickness of 1.5mm. The result is an incredibly rigid construction that remains one of Ducati's lightest frame solutions ever. Adding style to performance, the three colour versions for the 848EVO use frames finished in red and racing black while the 1198 is in racing black and both schemes of the 1198 SP are finished in red.

Front suspension
Both the 848EVO and 1198 feature fully adjustable 43mm Showa forks, with an additional special low friction titanium oxide treatment applied to the sliders of the 1198, while spectacular 43mm Öhlins with low friction titanium nitride-treated sliders are used on the 1198 SP. Both front suspension solutions have radial brake calliper mountings providing superior road holding and incredible feedback to give every rider more confidence and control.

Rear suspension
The lightweight Trellis frame and single-sided swingarm enable a compact and weight-saving rear suspension linkage system that features separate lower pick-up points for the push-rod and suspension unit. This 'tandem' design effectively reduces stress around the linkage pick-up area of the Trellis frame. Working together with this highly efficient linkage is a fully adjustable Showa single shock for the 848EVO and 1198, and an incredible Öhlins unit for the 1198 SP with TTX twin tube technology providing totally separate damping adjustment in compression and rebound. The system uses experience gained in MotoGP to minimise friction and reduce the risk of cavitation under extreme conditions. The 1198 and 1198 SP rear suspension system has an adjustable rear ride-height, independent of spring pre-load and other suspension settings – valuable when seeking the perfect set-up for personal riding style or track conditions.

Single-sided swingarm
The dual construction technique used for the single-sided swingarm allows the main operational components to use individual aluminium castings so as to ensure strength around the pivot points, wheel hub and suspension links, while lightweight, fabricated aluminium sections are used to complete the construction into a single, beautifully engineered component. The 848EVO, 1198 and 1198 SP all have singlesided swingarms finished in black.

Race-bred brakes
Ducati Superbikes have always been famous for their incredible, track-derived braking performance and the 2011 model line-up is no exception. The 1198, 1198 SP and now the 848EVO all use Brembo's incredibly powerful Monobloc calliper racing technology. Machined from a single piece of alloy, the callipers achieve a higher rigidity and resistance to distortion during extreme braking. The resulting increase in hydraulic efficiency not only delivers incredible braking power, but also provides an enhanced and precise 'feel' at the brake lever.
The twin Monobloc callipers each have four 34mm pistons that grip 320mm discs on the 848EVO and huge 330mm discs on the 1198 and 1198 SP to achieve spectacular braking performance.

Super lightweight wheels
The lightweight front wheels used on all Ducati Superbike models substantially reduces the moment of inertia, enabling a faster change of direction and enhanced acceleration and braking performances. The 848EVO is equipped with Y-shaped, 5-spoke wheels by Enkei which are finished in black while the 1198 rides on 10-spoke wheels finished in a subtle graphite grey, also by Enkei. The 1198 SP goes to the next specification level by rolling out on beautiful black 7-spoke lightweight, forged-aluminium, machine-finished wheels by Marchesini.
The 848EVO 1198 and 1198 SP models are all fitted with Pirelli Diablo Supercorsa SP tyres, at 120/70 ZR17 for the front, 180/55 ZR17 for the rear of the 848EVO and 190/55 ZR17 for the rear of both 1198 models. These high-performance tyres have shoulder areas that maximize the contact patch and carcasses specially designed for stiffness under heavy braking and precision during high speed cornering. This precision in tyre construction enabled Ducati technicians to create extremely fine programs for the Ducati Traction Controls systems used on the 1198 and 1198 SP.

Magnesium subframe
Producing a front subframe in magnesium underlines the attention to weight-saving detail in the Ducati Superbike range. Its construction provides secure support for the headlamp, instruments and fairing, and the weight-saving around this high, forward position contributes considerably to overall 'feel' and control of the machine.

Aerodynamic bodywork
Carefully designed for aerodynamic efficiency and to hug the sleek lines of the chassis, the Superbike bodywork enables the rider to blend effortlessly into the correct riding position.
Its race-developed fairing design ensures perfect integration with the cooling system by providing efficient flow through the advanced, large surface area coolant radiator, which is assisted by lightweight, high flow electric fan assemblies and oil coolers. Aerodynamically shaped air ducts positioned just below the headlamps are precisely calculated to provide ample air delivery to the pressurised airbox. The lightweight bodywork contributes considerably to overall performance by reducing weight, protecting the Testastretta Evoluzione engine's power output, and assisting the rider to effortlessly 'tuck in' from the wind stream and reduce drag to achieve maximum straight-line track speeds.

Instrumentation

This pure racing digital instrumentation originating from Ducati's MotoGP project has no switches or buttons to compromise its clean, minimalist lines. Instead, information additional to the default read-outs is managed from the left-hand handlebar-mounted switch gear, allowing the rider to scroll through and select from various menus. The display, which has a bright white LED back lighting presents rpm and speed, with the former displayed across the screen in a progressive bar graph. Optionally, the rpm and speed can be displayed in numeric values. Additionally, it displays lap times, DTC level selected (if activated on 1198 and 1198 SP) time, air temperature, coolant temperature, battery voltage, two trips and a trip that automatically starts as the fuel system goes onto reserve. Warning lights illuminate to signify neutral, turn signals, highbeam, rev-limit, low oil pressure, fuel reserve, DTC intervention (if activated on 1198 and 1198 SP) and scheduled maintenance. The instrument display is also used as the control panels for the DDA (supplied as standard equipment with the 1198 and 1198 SP), DTC and DQS systems as well as listing lap times recorded by using the high-beam flash button as a stopwatch.

848 EVO, lights and indicators

The horizontal twin headlamps, a signature Ducati style from the iconic 916, are modernised with the latest lighting technology. Two polyellipsoidal units light the way with a powerful beam while maintaining an aggressive look to the front of the machine in pure Ducati Superbike tradition. The rear light employs a specially designed strip of LEDs enhanced by a high diffusion lens shaped into the sleek lines of the tailpiece. The same LEDs are intensified for brake lights.
The directional indicators also use the latest in LED technology for illumination. The frontal indicators are beautifully integrated into the rear view mirrors, which come with an optional spacer kit enabling an extension of 30mm over the standard mirror stem length.

Ducati Quick Shift

The Ducati Quick Shift (DQS) system is the first time that a race-style electronic quick-shift has been supplied as original equipment on a production Ducati. Normally used specifically for racing, the system allows the rider to keep the throttle open when changing-up through the gearbox, helping to save vital seconds in the pursuit of faster lap-times. The system not only saves time when changing gear, but also enables the possibility of uninterrupted air flow through the throttle bodies throughout the upward gearchanging process. The system consists of a micro-switch built into the linkage of the gear change lever, which when actuated in the direction of selecting a higher gear, sends a signal to the main ECU. The ECU instantly understands which gear the motorcycle is in by calculating the rpm and vehicle speed and then reads the amount of throttle opening before applying a pre-programmed cut in fuel injection and ignition measured in milliseconds. This spilt-second electronic interruption in drive is programmed precisely to allow the next gear to be selected without having to actuate the clutch or close the throttle.
The DQS system can be deactivated by entering the control panel in the motorcycle’s instrumentation and is reactivated by default the next time the ignition is turned on. As the system only functions for a matter of milliseconds, the 1198 and 1198 SP can still be ridden using a normal gear-changing style.

Ducati Traction Control

Ducati were the first manufacturer to introduce a true competition-level traction control system on a production motorcycle and for 2011 the highly successful system is now integrated into both the 1198 and 1198 SP electronics as standard equipment. The Ducati Traction Control (DTC) system further underlines Ducati's technology flow from racing to production and demonstrates how solutions developed for the track can be applied to enhance performance safety on the road. DTC uses the same software logic developed and used by Ducati Corse for their World Championshipwinning MotoGP and World Superbike motorcycles and offers a choice of eight settings developed by their professional test riders and racers. Accessible from the left-hand switchgear and displayed on the digital instrumentation, the system offers a choice of eight profiles, each one programmed with a wheel-spin tolerance matched to progressive riding levels of skill graded from one to eight. While level eight administers a confidence-building, high level of interaction from the system by activating upon the slightest amount of wheel-spin, level one offers a much higher tolerance and, therefore, much less intervention for highly competent riders. When the level is selected and DTC activated, the level is displayed on the instrumentation.

When the profile that best suits the combination of road or track conditions and riding style has been selected and the DTC system activated, front and rear wheel sensors compare speed differential to sense when rear traction is being broken (wheel-spin). DTC then decides the best combination of two different types of instant electronic adjustment, calculated with data supplied from multiple sources. The first 'soft' stage of system interaction is executed by high speed software that makes instant electronic adjustment to the ignition timing, administering varying amounts of ignition retardation to reduce the engine's torque. During this initial stage of DTC interaction, up to three red lights – normally used to signify the over-rev limiter – illuminate to indicate the amount of DTC being applied.
If the DTC software detects that the first 'soft' stage of system interaction is inadequate to control the wheel-spin, it continues to administer ignition retardation and, in addition, instructs the engine ECU to initiate a pattern of constantly increasing injection cuts until, if necessary, full injection cut. During this second stage of interaction, all four warning lights fully illuminate to signify that DTC has also initiated injection cuts. As soon as the system recognises the gradual return of equal wheel speeds, it incrementally re-establishes normal power delivery. This seamless interaction is key to the super-smooth operation of the system. The real innovative thinking behind the DTC system is how the various range of sensitivity levels decide precisely how to react to excessive wheel-spin by understanding the bike's exact 'dynamic situation'. From slow mid-corner acceleration with considerable vehicle inclination to high speed corner exits while almost upright, this 'system intelligence' is achieved by processing a mass of data in a matter of milliseconds. This technology exists thanks to the thousands of laps and hours spent testing, programming and earning Ducati Corse race victories on the track. It represents just part of Ducati's latest road-bike technology and provides considerable increase in performance safety during mid-corner acceleration.

Ducati Data Analyser (DDA)

The Ducati Data Analyser (DDA) – complete with PC software, a USB-ready data retrieval card and instructions – evaluates the performances of the bike and its rider, and makes comparisons between various channels of information. The DDA is available for the 848EVO from Ducati Performance, and is supplied as standard equipment with the 1198 and 1198 SP. Normally only available on race bikes, DDA records numerous channels of data including throttle opening, vehicle speed, engine rpm, engine temperature, distance travelled, laps and lap times. The system also automatically calculates engine rpm and vehicle speed data so as to display gear selection as an extra channel of information. An additional channel of information is now dedicated to recording the DTC index which can then be viewed as a graphic trace and indicates the amount of DTC interaction during wheelspin. At the end of a ride or track session, an upgraded 4mb of data can be downloaded to a PC ready to compare, analyse and get an inside view of the performance of the rider and motorcycle.
Data can be analysed in graphic form with options to zoom into detail of specific sections. Dragging a trace along a timeline to reveal individual values of the above listed channels enables the user to analyse performance in the same way that data technicians can in factory teams. The software allows data to be compared with that from a completely separate session and for pages of data to be printed off easily.

Technical Features , The New 2011 Ducati 848 EVO

Powerunit Engine

Desmodromics
The incredible valve performances of our engines are only possible because of Ducati's unique Desmodromic system, where valve closure is activated mechanically. At high rpm it would be almost impossible for the valve to follow the steep closure profile of the cam lobe if it were relying upon a normal valve spring. With the Desmo system, the valve is closed mechanically with the same accuracy as it is opened, enabling steep cam profiles and radical cam timings. This system is used on every single Ducati power unit including our world-beating Superbike and Desmosedici MotoGP engines.

Exhaust system
The super-efficient power unit exhausts through a lightweight 2-1-2 system equipped with a catalytic converter and 2 lambda probes to conform to Euro3 regulations.

Camshafts
New camshafts provide 13mm of valve-lift compared with 11.5mm and an inlet duration increase from 253° to 257° to provide enhanceded performance

Power & torque curves
The new 848EVO is powered by a liquid cooled, L-Twin, Desmodromic engine that produces 140hp (103kW) @ 10,500 rpm and a high-accelerating 72.3lb-ft (10kgm) of torque @ 9,750 rpm. The Testastretta delivers a thrilling torque output at low-medium revs and an exciting power delivery at high rpm.

Elliptical throttle bodies
The 848EVO engine is fed by MotoGP-derived elliptical large section throttle bodies which are now increased from an equivalent diameter of 56mm to 60 mm. Representing a 30% increase in air flow over conventional throttle bodies, the elliptical shape contributes to a considerable power increase.

Vacural® crankcases
The highly advanced Superbike 848EVO engine features vacuum die-cast crankcases, formed using Vacural® technology, a process that achieves a significant weight saving and ensures consistent wall thickness and increased strength.

848EVO's Testastretta Engine
The “EVO” treatment applied to the 848 introduces a 6hp power boost to 140hp and a torque increase to 10kgm that results in a razor-sharp and easy-to-use power delivery. The 94mm x 61.2mm bore and stroke 848EVO engine is a fitting reward to Ducati's ingenuity and a clear result of the continual attention to detail and development of their twin-cylinder technology.

Compression ratio
A brand new piston crown and combustion chamber shape improve burn efficiency and increase the compression ratio to a power-enhancing 13.2:1

Magnesium alloy covers
Attention to weight reduction is further underlined with the cam covers cast in magnesium alloy.

Lightweight clutch
The 848EVO engine include a sophisticated wet clutch that weighs 1kg (2.2lbs) less than its dry counterpart, has a much longer service life, improved clutch feel and quieter operation.

Chassis & Suspension System

Showa rear suspension
The rear is controlled by a fully adjustable Showa single shock.

Showa forks
The 848EVO features fully adjustable 43mm Showa forks.

Cross-mounted steering damper
A control-enhancing steering damper maintains perfect front-end stability, inspiring supreme control and confidence alongside the increased power output.

Trellis frame
Developed in cooperation with Ducati Corse, the lightweight Trellis frame features 34mm main section tubes with a material thickness of 1.5mm. The result is an incredibly rigid construction that remains one of Ducati's lightest frame solutions ever. Through decades of racing and development, Ducati has proven that innovative chassis engineering and evolutionary frame advancements win races. The tubular Trellis frame, used on every Ducati motorcycle, is a signature design element. This unique Ducati frame is light, rigid and beautiful thanks to its ingenious Trellis design and use of high quality ALS 450 tubing. Each tube is mitred and micro-fusion welded in a complex triangulated pattern and our incredibly strong L-Twin engine cases are functional "stressed members" of the chassis.

Single-sided swingarm
The dual construction technique used for the single-sided swingarm allows the main operational components to use individual aluminium castings so as to ensure strength around the pivot points, wheel hub and suspension links, while lightweight, fabricated aluminium sections are used to complete the construction into a single, beautifully engineered component. The 848EVO swingarm is colour finished in black anodized.

Superbike aerodynamics
Carefully designed for aerodynamic efficiency and to hug the sleek lines of the chassis, the Superbike bodywork enables the rider to blend effortlessly into the correct riding position. Its race-developed fairing design ensures perfect integration with the cooling system by providing efficient flow through the advanced, large surface area coolant radiator, which is assisted by lightweight, high flow electric fan assemblies and oil coolers. Aerodynamically shaped air ducts positioned just below the headlamps are precisely calculated to provide ample air delivery to the pressurised airbox.

The lightweight bodywork contributes considerably to overall performance by reducing weight, protecting the Testastretta Evoluzione engine's power output, and assisting the rider to effortlessly 'tuck in' from the wind stream and reduce drag to achieve maximum straight-line track speeds.

Brembo’s monobloc caliper
Ducati Superbikes have always been famous for their incredible, track-derived braking performance and the 848EVO is no exception. Now featuring radially mounted Brembo's powerful Monobloc calliper racing tachnology. The twin Monobloc callipers each have four 34 mm pistons that grip 320 mm discs to help generate planet-stopping braking while transmitting a precise “feel” at the brake lever. On the rear is a Brembo two-piston calliper and 245 mm disc.

Lightweight 5-spoke wheels
The lightweight front wheels used on all Ducati Superbike models substantially reduces the moment of inertia, enabling a faster change of direction and enhanced acceleration and braking performances. The 848EVO is equipped with Y-shaped, 5-spoke wheels by Enkei and are now mounted with state-of-the-art Pirelli Diablo Supercorsa SP 120/70 ZR17 front and 180/55 ZR17 rear tyres

Magnesium front sub-frame
Producing a front subframe in magnesium underlines the attention to weight-saving detail in the Ducati Superbike range. Its construction provides secure support for the headlamp, instruments and fairing, and the weight-saving around this high, forward position contributes considerably to overall 'feel' and control of the machine.

Vehicle Equipments

Lightings, breakheart system
The horizontal twin headlamps, a signature Ducati style from the iconic 916, are modernised with the latest lighting technology. Two polyellipsoidal units light the way with a powerful beam while maintaining an aggressive look to the front of the machine in pure Ducati Superbike tradition. The rear light employs a specially designed strip of LEDs enhanced by a high diffusion lens shaped into the sleek lines of the tailpiece. The same LEDs are intensified for brake lights. The directional indicators also use the latest in LED technology for illumination. The frontal indicators are beautifully integrated into the rear view mirrors.

GP-derived instruments
This pure racing digital instrumentation originating from Ducati's MotoGP project has no switches or buttons to compromise its clean, minimalist lines. Instead, information additional to the default read-outs is managed from the left-hand handlebar-mounted switch gear, allowing the rider to scroll through and select from various menus. The display, which has a bright white LED back lighting, presents rpm and speed, with the former displayed across the screen in a progressive bar graph. Optionally, the rpm and speed can be displayed in numeric values. Additionally, it displays lap times, DTC level selected (if activated on 1198) time, air temperature, coolant temperature, battery voltage, two trips and a trip that automatically starts as the fuel system goes onto reserve. Warning lights illuminate to signify neutral, turn signals, high-beam, rev-limit, low oil pressure, fuel reserve, DTC intervention (if activated on 1198 S, 1198 S Corse and 1198 R Corse) and scheduled maintenance. The instrument display is also used as the control panels for the DDA (DDA kit supplied as standard on 1198 S, 1198 S Corse and 1198 R Corse) and DTC systems as well as listing lap times recorded by using the high-beam flash button as a stopwatch.

Controls
Ducati Superbikes are equipped with adjustable levers that operate Brembo radial-type master cylinders with remote reservoirs. Add easy-to-use switchgear with stopwatch function and DTC and DDA management (where applicable) and it becomes clear that functionality plays a major role alongside performance.

Mirror extension kit
All Superbike mirrors come with an optional spacer kit enabling an extension of 30mm over the standard mirror stem length.

Stopwatch
The digital display is programmed with a stopwatch function that, when enabled, can be triggered by using the high-beam flash button and each recorded time stored in a memory. After your journey or track session, the times or lap times can be recalled from the memory and scrolled through by using the instrumentation buttons on the left-hand switchgear.

DDA ready
The instrument display also doubles as a control panel for the activation of the Ducati Data Analyser (DDA) system, which is available as an accessory from Ducati Performance. The bike has been built ‘system-ready’ for the data acquisition kit, which consists of special DDA software and a memory key that slots into a plug under the seat. The same plug also doubles as the connection for a handy new battery charger available as an accessory from Ducati Performance.

848 EVO , Concept

The 848EVO now further enhances Ducati's most impressive lightweight Superbike ever with more power from the Testastretta engine and more braking power from Brembo’s incredible Monobloc brake technology combining to provide an even more exciting way to enter the world of Ducati Superbikes.

Superbike heritage

Ducati Superbikes, designed, engineered and built in Bologna, Italy, have always represented the pinnacle of Ducati motorcycle technology and racing success. For Ducati, racing and winning are a way of life and a way of thinking for our designers, engineers and everyone at the factory. Our unique engineering solutions are proven on the race track, where the only way to win is to have technical superiority and dependable performance. Ducati have dominated World Superbike racing, winning more Riders' and more Manufacturers’ World Championship titles and more individual races than any other manufacturer. Add these unequalled performances to the historic achievement of winning the MotoGP World Championship, and the results speak for themselves.

Engineered by the stopwatch

Ducati Superbikes are the most advanced, most powerful twin-cylinder motorcycles ever built. They are the product of a team of designers and engineers who have combined their Ducati MotoGP and World Superbike technologies to create the finest sportbikes in the world. From race-level engine specifications to World Championship-winning traction control, the results are pure excellence. The Ducati Traction Control (DTC) system further underlines our technology flow from racing to production and demonstrates how solutions developed for the track can be applied to enhance safer performance on the road.

Designed by the race track

Ducati Superbikes are race bikes, pure and simple. Their striking aerodynamic shapes create a natural riding position, confirmed by our development and factory team riders as the optimum for speed and agility. Performance is first and foremost in every detail. Trademark Ducati features like the high tail section and compact front end combine with twin under-seat silencers and single-sided swingarm to express the sheer engineering beauty of aerodynamics and agility. Add the Testastretta Evoluzione engines as the hearts of the machines and the result is all-out performance Ducati Superbikes that look fast even when parked.

OVERVIEW SPECIFICATIONS

Engine

Bore (in) : 3.7
Bore (mm) : 94
Carburetion Brand : Marelli
Compression Ratio : 13.21
Cooling : Liquid
Cylinders : 2
Displacement (cc) : 849.4
Displacement (ci) : 51.8
Emissions Standards : Meets Euro 3 Emissions
Engine Brand Name : Testastretta Evoluzione
Engine Configuration : Longitudinal Twin
Engine Immobilizer : Standard
Engine Type : 4-Stroke
Fuel Injector : Yes
Fuel Requirements : Premium
Fuel System Type : Fuel Injected
Ram Air Induction : No
Starter : Electric
Stroke (in) : 2.41
Stroke (mm) : 61.2
Valve Configuration : DOHC
Valves : 8
Valves Per Cylinder : 4

Performance

Engine Displacement to Weight (cc) : 2.3
Horsepower (bhp) : 140
Horsepower (kW) : 103
Horsepower RPM : 10500
Horsepower To Weight (hp) : 0.38
Torque (Ft Lbs) : 72.3
Torque (Nm) : 98
Torque RPM : 9750

Transmission

Final Drive Ratio : 2.6
Gear Ratio (1) : 2.47
Gear Ratio (2) : 1.76
Gear Ratio (3) : 1.4
Gear Ratio (4) : 1.18
Gear Ratio (5) : 1.04
Gear Ratio (6) : 0.96
Heel Toe Shifter : Not Available
Number Of Speeds : 6
Overdrive : Yes
Primary Drive (Engine / Transmission) : Gear
Primary Drive (Rear Wheel) : Chain
Reverse : No
Transmission Type : Manual

Suspension & Steering

Air Adjustable : No
Front Adjustable Fork Pre-Load : Yes
Front Adjustable Rebound Damping : Yes
Front Central Suspension Strut : No
Front Fork Diameter (in) : 1.7
Front Fork Diameter (mm) : 43
Front Suspension Brand Name : Showa
Front Suspension Type : Inverted Fork
Front Travel (in) : 5
Front Travel (mm) : 127
Number Rear Shock Absorbers : 1
Rear Adjustable Rebound Damping : Yes
Rear Adjustable Shock / Spring Pre-Load : Yes
Rear Suspension Brand Name : Showa
Rear Suspension Type : Single Sided Swing Arm
Rear Swingarm Material : Aluminum
Rear Travel (in) : 4.7
Rear Travel (mm) : 120
Steering Damper : No

Wheels

Chromed : No
Front Wheel Diameter : 17
Front Wheel Width (in) : 3.5
Rear Wheel Diameter : 17
Rear Wheel Width (in) : 5.5
Tube / Tubeless : Tubeless
Wheels Composition : Aluminum

Tires

Front Tire Aspect Ratio : 70
Front Tire (Full Spec) : Pirelli Dragon Supercorsa PRO 120/70 ZR17
Front Tire Speed Rating : Z
Front Tire Width : 120
Rear Tire Aspect Ratio : 55
Rear Tire (Full Spec) : Pirelli Dragon Supercorsa PRO 180/55 ZR17
Rear Tire Speed Rating : Z
Rear Tire Width : 180
Tire Brand : Pirelli

Brakes

Anti-Lock Brakes : Not Available
Brake Brand Name : Brembo Monobloc
Front Brake Diameter (in) : 12.6
Front Brake Diameter (mm) : 320
Front Brake Type : Dual Hydraulic Disc
Front Caliper Pistons : 4
Linked Brake System Front to Rear : Not Available
Rear Brake Diameter (in) : 9.7
Rear Brake Diameter (mm) : 245
Rear Brake Type : Hydraulic Disc
Rear Caliper Pistons : 2

Seats

Adjustable : No
Backrest Logo Plate : No
Detachable Passenger Seat : Not Available
Grab Rail or Strap : Standard
Heated Seat : Not Available
Number Of Seats : 2
Seat Backrest : Not Available
Seat Height (in) : 32.6
Seat Height (mm) : 830
Seat Location : Driver and Passenger
Seat Rail : Not Available
Seat Specifications : Standard
Seat Tail Cover : Standard
Seat Type : Two-Piece

Bodywork

Belt Guard : No
Body Material : Plastic
Brush Guard : No
Carburetor Cover : No
Chain Guard : Yes
Choke Knob Cover : No
Construction : Standard
Drive Shaft Cover : No
Drive Shaft Guard : No
Exhaust Guard : Yes
Exterior Covers : Standard
Exterior Guards : Standard
Floor Boards : Not Available
Foot Peg Location : Driver and Passenger
Foot Peg Material : Steel
Fork Guards : Yes
Frame : Steel / Magnesium
Front Fender : Standard
Front Fender Rail : Not Available
Front Fender Trim : Not Available
Hand Grip Material : Rubber
Hand Grips : Standard
Hand Guards : No
Heel Guards : No
License Plate : Standard
Light Guard : No
Lower Fairing : Standard
Rear Fender : Standard
Rear Fender Rail : Not Available
Rear Fender Trim : Not Available
Rearview Mirrors Folding : Yes
Saddle Bag Guard : No
Sidecar : Not Available
Skid Plate : Not Available
Spoiler : Standard
Stand : Standard
Stand Type : Kick
Tank Guard : Yes
Turn Signal Visor : Not Available
Upper Fairing : Standard

Instruments

Digital MotoGP derived unit with displays for: Speed, rev counter, lap times, time, air temp, coolant temp, battery voltage, A & B trips, fuel reserve trip, scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, oil pressure, fuel reserve. Plus: Integrated immobilizer system.

Fuel Capacity

Fuel Capacity (gal) : 4.1

Fuel Capacity (l) : 15.5

Fuel Capacity Reserve (gal) : 1

Fuel Capacity Reserve (l) : 4

Colours

Red (red / black)

Dark Stealth (racing black / black)

DIMENSIONS

Adjustable Throttle : Not Available
Capacities : Standard
Cassette Player : Not Available
CB Radio : Not Available
CD Player : Not Available
Cruise Control : Not Available
Cupholder : Not Available
Dimensions : Standard
Dry Weight (kg) : 168
Dry Weight (lbs) : 370
First Aid Kit : Not Available
Handlebar Lock : Standard
Handlebar Pads : Not Available
Headset : Not Available
Heated Hand Grips : Not Available
Height (in) : 43.3
Height (mm) : 1100
Intercom : Not Available
Introduction Year : 2008
Keyless Ignition : Not Available
Length (in) : 82.6
Length (mm) : 2100
Major Revision Year : 2011
Manufacturer Country : Italy
Manufacturer Recommend Minimum Age : 16
Manufacturer Type : Super Sports Bike
Map Holder : Not Available
MIC Model Segment : ON-HWY Sport Bike Over 750cc
Power Outlet : Not Available
Radio : Not Available
Rake (degrees) : 24.5
Revision Status : Upgraded
Service Reminder : Standard
Speakers : Not Available
Special Package : Not Available
Weight : Standard
Wheelbase (in) : 56.3
Wheelbase (mm) : 1430
